Builder Standard

• 12 gauge steel structure engineered for high-traffic interior and exterior use

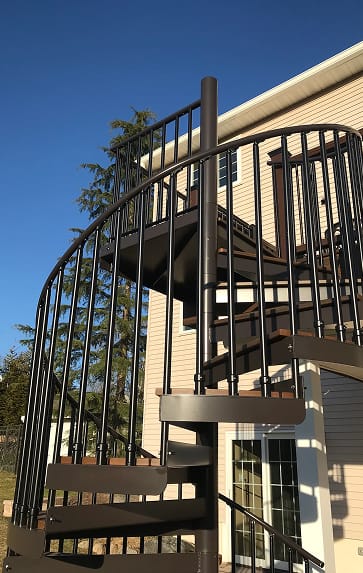

• Out-of-the-box code-compliance with spindle spacing and diameter options from 60 to 84 inches

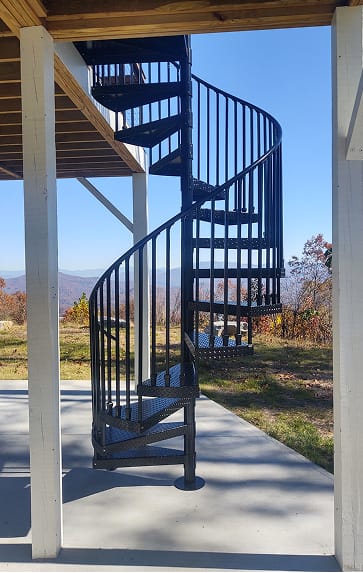

• Smooth plate treads come standard, with diamond plate or bar grating designs available

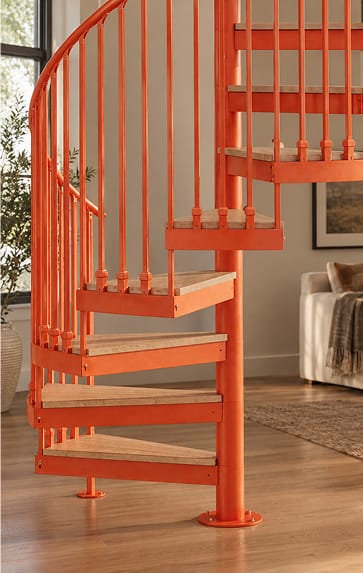

• Black primer finish with custom colors and finishes available as upgrades
• Landing and gate configurations available

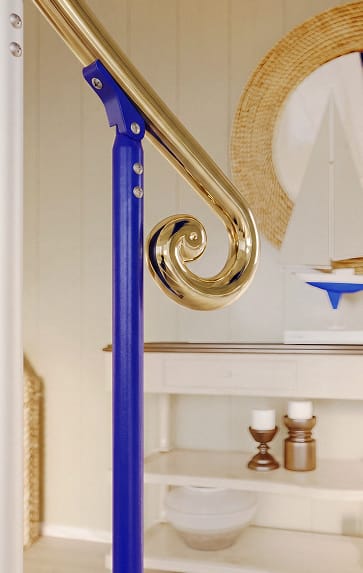

• Fully customizable across treads, handrails, spindles, and more
• 5 business day lead time

The Builder Standard series is the cornerstone of our spiral staircase line, specified for the way builders and contractors plan projects. Code compliance with spindle spacing, diameter, and handrail height, is built into the staircase before it’s fabricated, so it’s one fewer item to verify in the field. Diameter, tread, and finish are set to the ranges contractors use most often, with tread covering, handrail, spindle accessories, center pole caps, and other stair parts still open to customize.

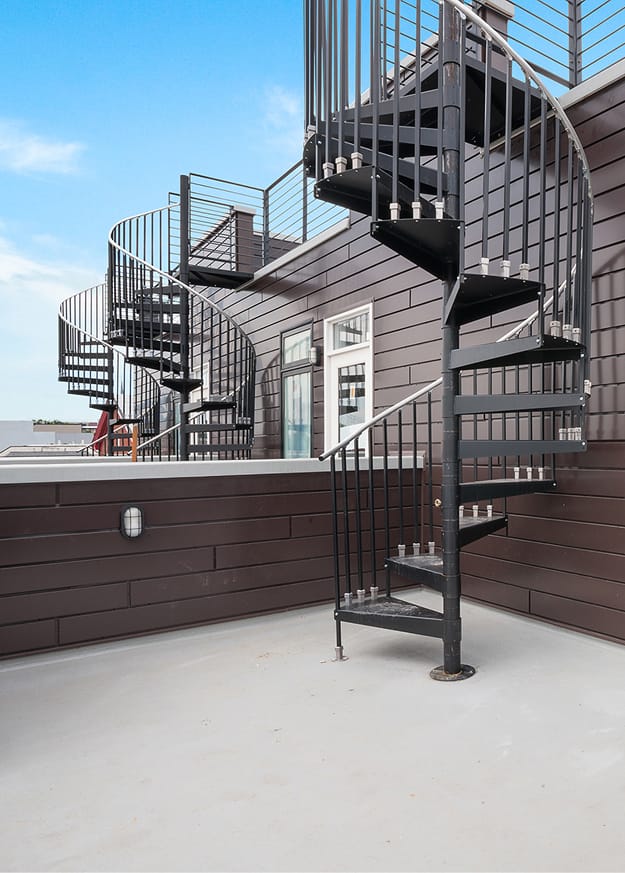

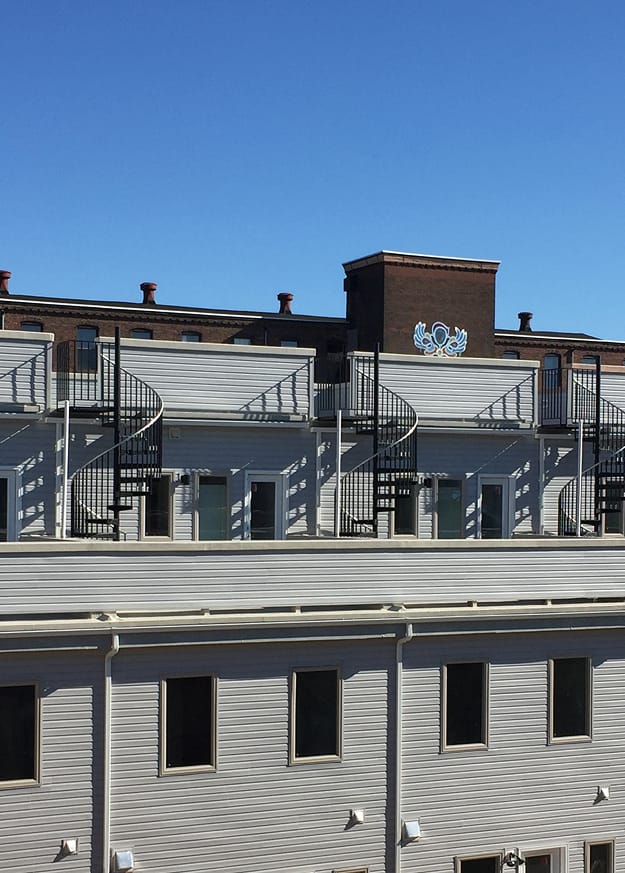

A 5-business day lead time keeps pace with scaled renovations, new construction, and multi-unit builds, where several units are often moving through the same schedule at once.

• Engineered to NAAMM AMP 510 load standards: 100 lb/sq ft uniform live load, 300 lb minimum concentrated live load
• Handrail rated to 200 lb lateral load without permanent set
• 12 gauge steel treads and landings (A-1011 steel plate)
• Fully shop-welded construction; no site welding, installation is mechanical fastening only
• Compliant with IBC, IRC, and other applicable local building code
